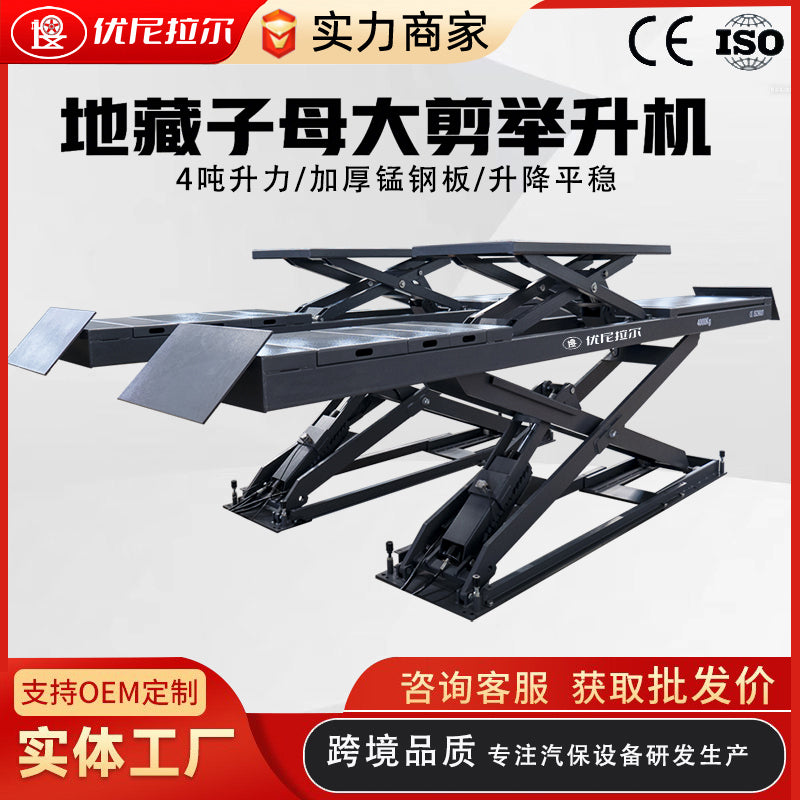

In-Ground Pro In-Ground Scissor Lift

The In-Ground Pro In-Ground Scissor Lift uses in-ground installation design, lift main body installed in pit below ground, vehicle parks on ground platform, when lifting platform rises from ground, when not in use platform flush with ground, does not occupy workshop floor space, workshop floor clean and beautiful, is preferred lifting equipment for high-end auto repair shops, 4S dealerships, modification shops. Double scissor structure design, uses two groups scissor arms synchronous lifting, uniform force, lifting smooth no swaying, overall load 3500kg, can safely lift sedan, SUV, MPV and other vehicle models. Hydraulic drive system uses imported hydraulic pump station and double-acting hydraulic cylinder, equipped with synchronous valve ensures two groups scissor synchronous lifting, lifting speed smooth, rise time about 35s, lower time about 25s. Platform uses anti-slip patterned steel plate, surface plastic sprayed, anti-corrosion wear-resistant, platform basic length 1600mm, equipped with extendable platform, after extension total length reaches 2400mm, can fit long wheelbase vehicles and large SUV. Platform width 600mm, wheelbase adaptation range wide. Equipped with secondary lifting jack (optional), can individually lift single wheel when vehicle lifted. Electric unlock system, equipped with wired hand controller, one-button operation lifting and unlocking, when lowering need simultaneously press lower key and unlock key, prevents misoperation. Multiple safety protection, equipped with mechanical pawl lock, hydraulic check valve, explosion-proof valve, overload protection and other multiple safety mechanisms, during lifting any position can safely lock, when power outage auto locks, explosion-proof valve when oil pipe bursts auto locks, prevents vehicle accidental lowering. Pit uses concrete pouring, equipped with waterproof drainage system, prevents pit water accumulation, pit inner wall waterproof treated. Passed CE certification, meets EU safety standards, after 10000 lifting test no fault. Provides 220V/380V 2 voltage specs. Installation needs excavate pit, pit size about 2200×900×350mm, professional install about 1-2 days (including pit construction). Provides 1-year whole machine warranty and 3-year hydraulic system warranty.
