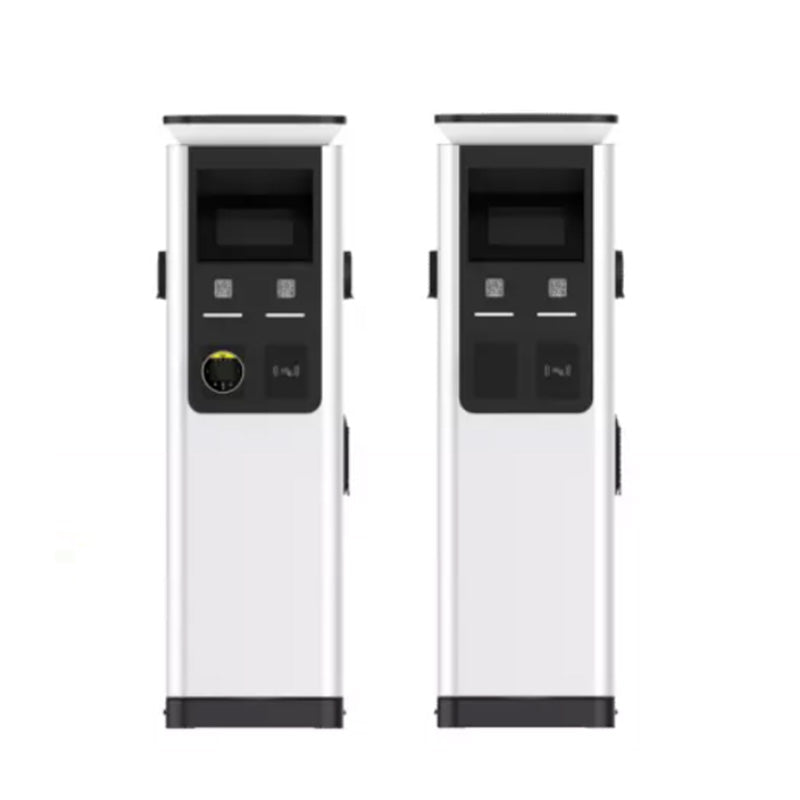

S Series EU Standard Commercial AC Charging Station
- Dual fast charging: Can provide up to 2x7.4kW/2x22kW charging power and can charge up to 2 EVs at the same time.
- Load Constraint: The DLB function prevents overloading and can intelligently distribute power in clusters with limited available charging power.
- Multiple Payment Terminals: Multiple payment methods such as mobile apps, RFID cards, and all-in-one payment terminals.
- MID Metering: Each outlet is equipped with a Class B MID meter to ensure measurement accuracy for commercial charging.
- Security and Safety: Equipped with 30mA Type A RCD and 6mA DC leakage protection, also with PEN protection (for UK market).
Model No.: gov-hj-230Category: ev-chargers
Contact us for price
Send an inquiry and our sourcing team will quote you within 1 business day.
Product details
The S series commercial AC charging station is designed to meet the European standard for charging electric vehicles in commercial operating environments. It meets the IEC/EN 61851 standard. It supports OCPP 1.6 extension protocol; Load constraint function can be realized by connecting external meter or CT via RS485; TN power supply system has built-in PEN protection system (UK), pile networking (Ethernet, CAN, Lora wireless networking), MID meter metering, etc.
