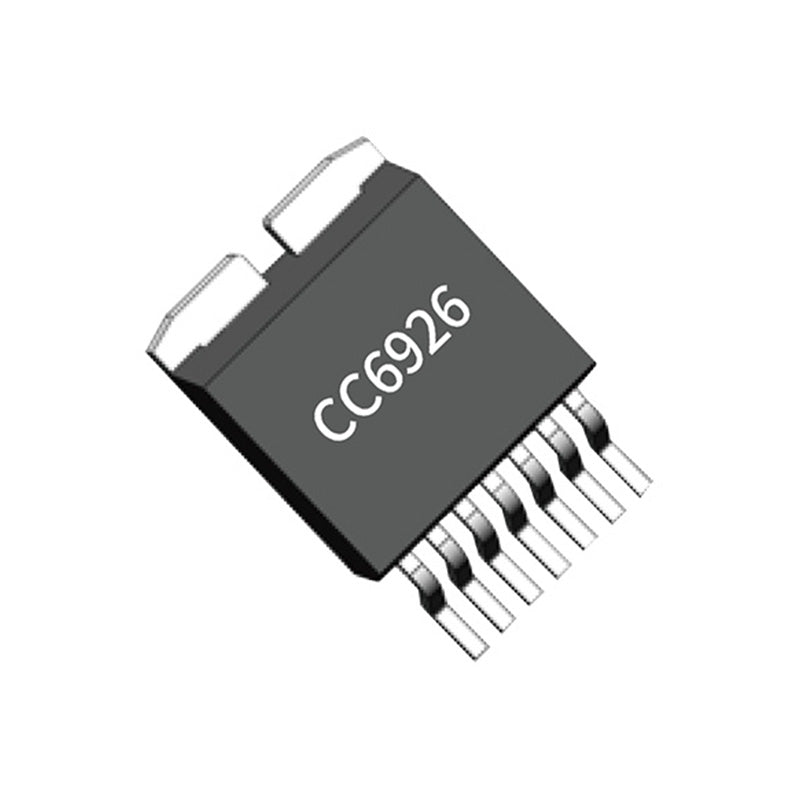

Ultra-High Range Monolithic Chip-Level Current Sensor CC6926

Discover the CC6926 chip-level current sensor with 300A peak measurement, 5KV isolation, low resistance, and xFault protection for automotive, solar, and industrial applications.

Model No.: gov-hj-143Category: car-electronics

Send an inquiry and our sourcing team will quote you within 1 business day.

Product details

The CC6926 chip-level current sensor features a peak measurement capability of 300A, high isolation voltage of up to 5KV, enhanced working isolation voltage of 750V, and an ultra-low-impedance copper busbar. It is equipped with overcurrent detection and alarm functions. The product delivers accurate DC/AC current measurement, excellent linearity, and superior temperature stability. It is widely applied in automotive electronics, photovoltaic systems, industrial control, new energy solutions, and communication equipment.

Technical Challenges Solved:

Extremely low conduction resistance, measured at only 30μΩ, with excellent temperature-rise performance.

Large current detection range with high surge current tolerance, providing reliable current measurement performance.

Supports the xFault function for overcurrent monitoring and alarm.

Application Functions:

Used for current detection in DC charging stations, photovoltaic inverters, and other applications.

Application Results:

Successfully adopted by leading customers in the new energy, industrial control, and automotive industries.
